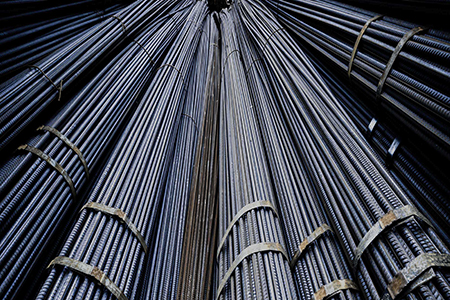

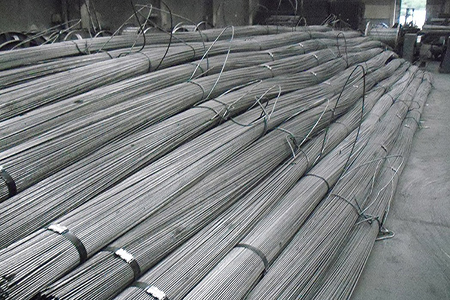

Debars/Rebars

Available Dimensions

Diameter: 8mm - 30mm
Length: 6000mm - 12000mm

Grade

All Grades according to the following standards:
ISO 6935 2:2007 (International Standard)
ES 262-2/2015 ISO: 6935-2/2007 (Egypt)
SASO 2/1992 (Saudi Arabia)

End use

Construction purposes

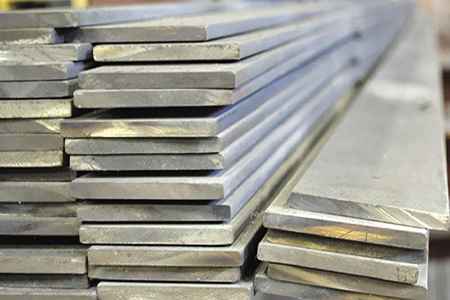

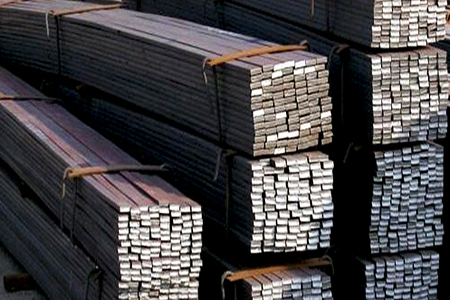

Flat bars and square bars

Available Dimensions

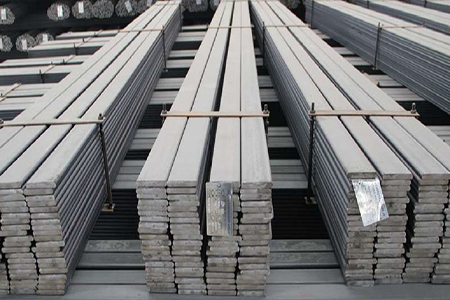

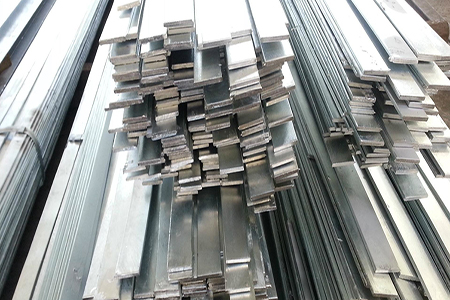

Flat bars:
20 x 3mm x 6m to 200 x 12 mm x 6m

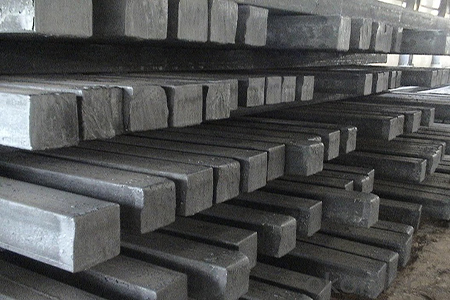

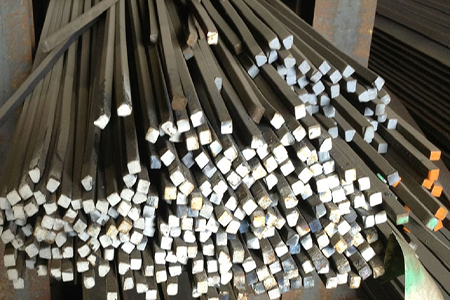

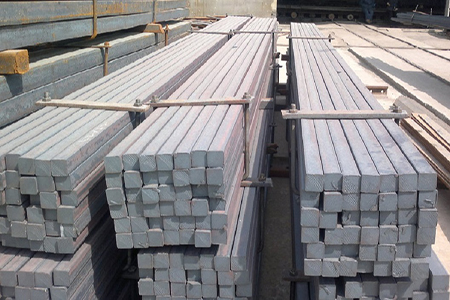

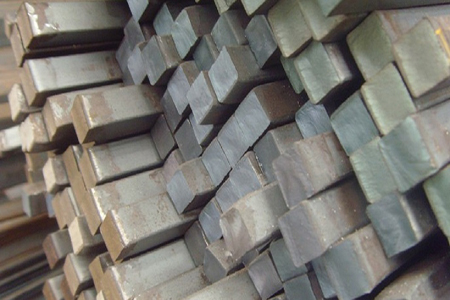

Square bars:
10mm x 10mm x 6m to 25 x 25mm x 6m

Grade

ASTM / EN / DSTU / GOST

End use

Fabrication

Wire rods

Available Dimensions

Diameter: 5.5mm - 25.4mm

Grade

All Grades under SAE (i.e. SAE1006; SAE1008...)

End use

Wire Drawing products, Nails, Glavanised wire, Fences, Industrial, Springs, Industrial Fasteners

Angles

Available Dimensions

Equal Angles:
Size: 25x25mm - 250x250mm - Thickness: 2.5mm - 25mm - Length: 6000mm - 12000mm
Unequal Angles:
Size: 75x50mm - 200x100mm - Thickness: 5mm - 15mm - Length: 6000mm - 12000mm

Grade

ASTM A36; A572 Gr.50; ABS Grade A; S275JR; S355JR; SS400

End use

Reinforce material of steel structures: i.e. iron tower materials, hull reinforcement material, and truss

U Channels

Available Dimensions

Size:
UPN channels (Euronorm): 30 - 400
GOST Channels (GOST): 80 - 300
UPE channels (Euronorm): 80 - 400
Length: 6000mm - 12000mm

Grade

EN 10025 S235JR; S275JR; S355JR; S355J0; S355J2
ASTM A36; A572 Gr.50

End use

Fabrication, reinforcing member of structural steel

Beams

Available Dimensions

Universal Beam: UB 127 x 76 till 1016 x 305
W-Section: W.S 0.4 x 0.4 to W.S 36 x 16.5
Japanese H Beams: 100 x 100 to 400 x 400
Japanese I Beams: 150 x 75 to 900 x 300
European Beam (HEA & HEB): HEA 100 to HEA 1000; HEB 100 to HEB 1000
European I Beam (IPE): IPE 80 to IPE 750
